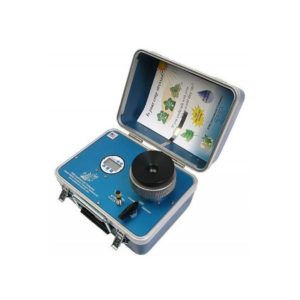

Model 600 Pressure Chamber Instrument is an old favorite we have built for over 40 years. We have recently (May 2011) updated this instrument with some changes that most users will appreciate. We have upgraded the Control Valve and internal piping to now allow direct connection to Nitrogen Cylinders with 207 Bar/3000 PSI pressure. This stainless steel valve is more durable and has a better packing therefore giving more life. Instrument comes fitted with our most popular sealing gasket size – 1/4 inch Compression Gland Gasket and Insert. This gasket will seal a sample that is 1/4 inch in diameter down to a completely closed position.

This is an excellent choice for routine water measurements for crop plants and light research in plants with little to moderate water stress. For extensive research projects you might consider a Model 1000 or Model 1505D due to the large range of operating pressure. The instrument requires a nitrogen source. You can use it in a lab or green house with a large cylinder or buy our light weight Portable Tank to allow for field work.

Specifications:

•  Maximum Operating Pressure
  40 bar
•  Chamber Construction
  Hard Anodized Solid Stock Aluminium
•  Read Out
  Bourdon Tube
  Gauge
  Bar – PSI scale
•  Size (L x W x H)
  13 × 11 × 10 inches
  33 × 28 × 24 centimeters
•  Weight
  14 Lbs/ 6 Kg
•  Gauge
  4.5″ Diameter Gauge”
  1/2 of 1% accuracy
  40 bar (4 Mpa) range

Instrument comes complete with 1/4 Inch Compression Gland Sealing System, 5 Extra 1/4 Compression Gland Gaskets, 6 foot Filling Hose, 1 – Solid Lab Stopper for instrument testing, O-Ring lubricant and Lithium Grease, 11/32 inch wrench and 3/32 inch Allen Key for Control Valve Adjustment and a color Operating Instructions Manual.
